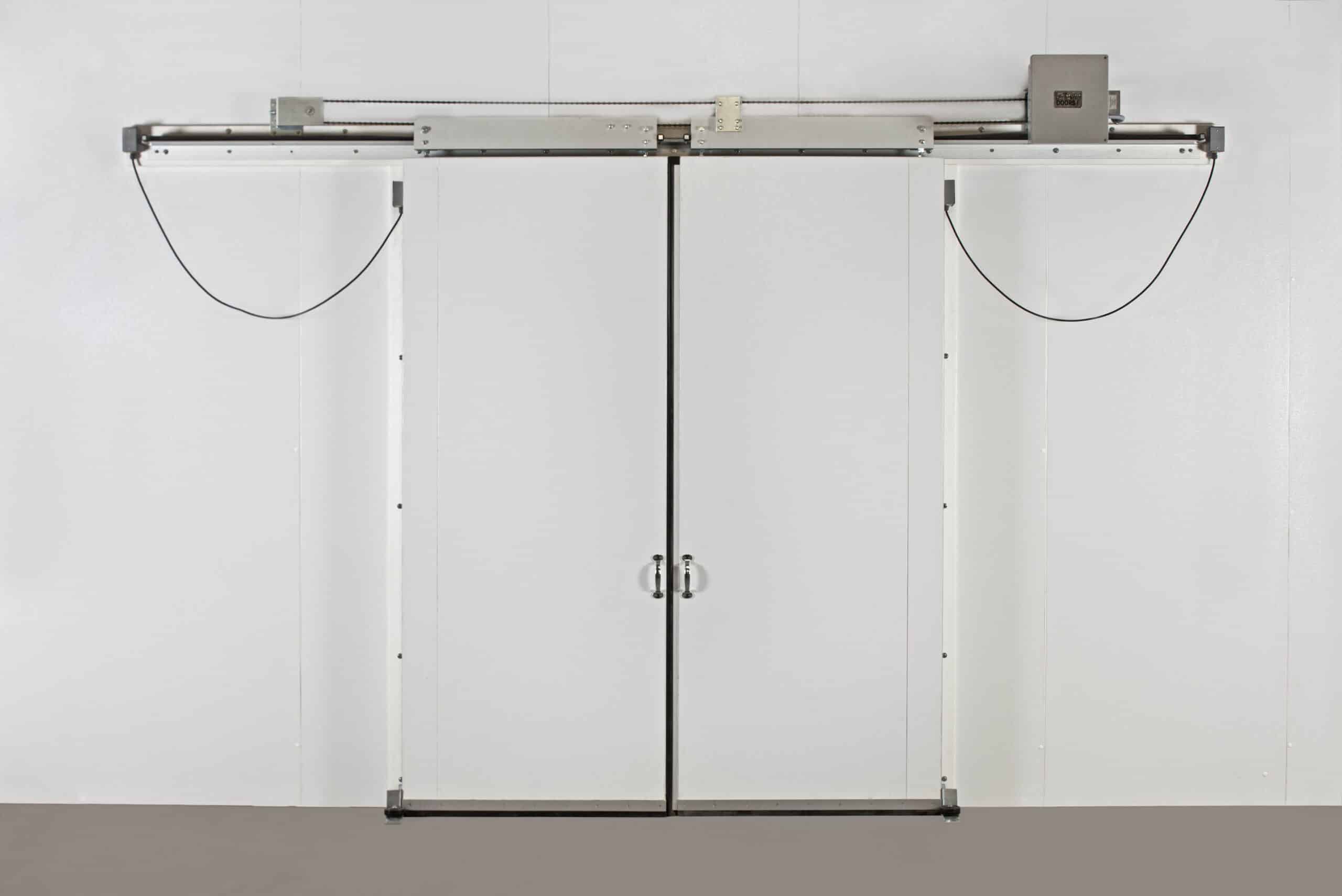

Bi-Part Manual and Power Doors
Explore LoTemp Bi-Part Horizontal Sliding Doors, designed for applications with limited space on either side of the door opening. Perfect for environments with high-volume forklift, pallet truck, and load handling equipment traffic, these doors provide single or double door access as needed. Available in standard sizes up to 12’0” width clearance x 16’0” height clearance, our bi-part doors offer versatility and functionality. For larger openings, single slide doors over 8’0” width clearance are split to comply with shipping regulations.
Wood-free design – aircraft-grade aluminum internal door panel frame
Strong, durable, and maintenance-free frame without the need of cladding
Adjustable reinforced neoprene bulb seals on three sides of opening
Freezer doors feature full-perimeter heater cables (120V/60Hz)
Down and indoor track system
Two ceiling mount pull switches (Power doors only)
Dual-speed operation, NEMA 4 control box (Power doors only)
High-Density Polyethylene Extrusion (HDPE) structural frame for header, casings, jambs, and mirror image backframes
- Clad with 26 ga. white stucco embossed steel interior and exterior over a vinyl frame with reinforced mitered corners
- Insulated with a minimum of 4” R32, non-CFC foamed-in-place polyurethane foam insulation
- Wood-free design with the use of white heavy duty High-Density Polyethylene Extrusion (HDPE) structural frame for header, casings, jambs, and mirror image backframes.
- HDPE is a maintenance-free solution that provides exceptional resistance to moisture, fading, insects, splintering, and warping.
- Consistent density and zero voids eliminate bacteria, molds, and fungus growth and create a strong durable frame.
- The strength, durability, and overall appearance of HDPE mean no additional steel cladding of the frame is required.
- Adjustable bottom door sweep
- Adjustable reinforced neoprene bulb seals are mounted on all sliding door casings and header for a positive seal, correcting wall irregularities.
- The bottom of each door has a sweep sill of grease-resistant reinforced gasket.
- .040 aluminum finish
- 1.75" thick door panel
- Perimiter jamb mount compression gasket
- Adjustable reinforced neoprene bulb seals
- Grooved-wheel track system
- An aircraft-grade anodized aluminum track holder, with a “V” grooved wheel on UHMW triangle down and in-door track system, creates a positive seal at the frame and floor of each sliding door.
- Combined with a carrier that incorporates a heavy-duty, non-derailing system, and an angle bracket, this track system provides users with a sturdy and reliable door operation.
- Floor-mounted stay rollers protect sliding doors from damage and limit operation.
- All sliding doors are equipped with an exterior bow handle and interior recessed handle as a standard.
- Heater cables (Freezer models only)
- In-fitting hinged freezer doors feature full-perimeter heater cables in the frame and bottom of the door sweep, ready for connection to a 120V/60Hz, single-phase AC line.
- The heat in the bottom door sweep creates a warm “chamber” under the door which eliminates the need for in-floor heaters.
- Dual-speed operator, chain, and controller (Power models only)
- Standard sizes of 36” x 84” and 48” x 84”
- Variety of 24 ga. metal finishes
- White HDPE jambs
- White HDPE mirror image back frames
- Steel cladding of header, casings, jambs and mirror-image back frames to match panel
- Alternate door finishes
- 6” thick panels
- 14” x 14”, and 14” x 24” vision panels both heated and non-heated
- Locking devices for both manual and power applications
- Kickplates (tailored in height and material)
- Pedestrian pass doors
- Additional heated seals for extreme temperatures
- Inside freezer kits for power doors mounted in extreme temperatures
- Meatrail port
- Rainhood
- Control options (remote control, motion control, loop detectors, TDC—time delay close, POM—partial open mode, and photocell)
- Three stainless steel butt hinges (Hager #1101)
- Stainless steel lockset (Hager #3600 lever style)
- 24 ga. Stainless steel, smooth, embossed, 304#4
- 24 ga. Sanisteel, smooth, white
- 24 ga. Galvanized, smooth, embossed, white
- 24 ga. Galvanized, smooth, mill
- .040 Aluminum, smooth, embossed, white
- .040 Aluminum, smooth, mill
- Battery Back-Up
- Loop/Motion Detectors
- Time Delay Close
- Partial Opening Control
- Radio Controls
- Photocell Opening/Closing System
- Photocell Open With Time Delay Close
- Photocell Safety
For more information, view LoTemp Brochure.
- ETL Certified
- ANSI
- UL 471CAN
- CSA C22.2 No.120 Listed
A comprehensive range of options is available for all LoTemp Doors, allowing you to incorporate features tailored to your specific cold storage application.
- High Sill
- Keyed cylinder (Hinged doors only)
- Stainless Steel hardware (Hinged doors only)
- Vision panels
- Kick plates
- Meat rail ports
- Rain hoods
- Interior jambs
- Back frames
- Locking devices
- Pedestrian pass doors (Sliding doors only)
- Alternative finishes
- Ability to source hardware per specification including electronic hardware, exit devices, door closers, etc.
1-Year Warranty*
*See LoTemp Limited Warranty for full details.
