single slide manual and power doors

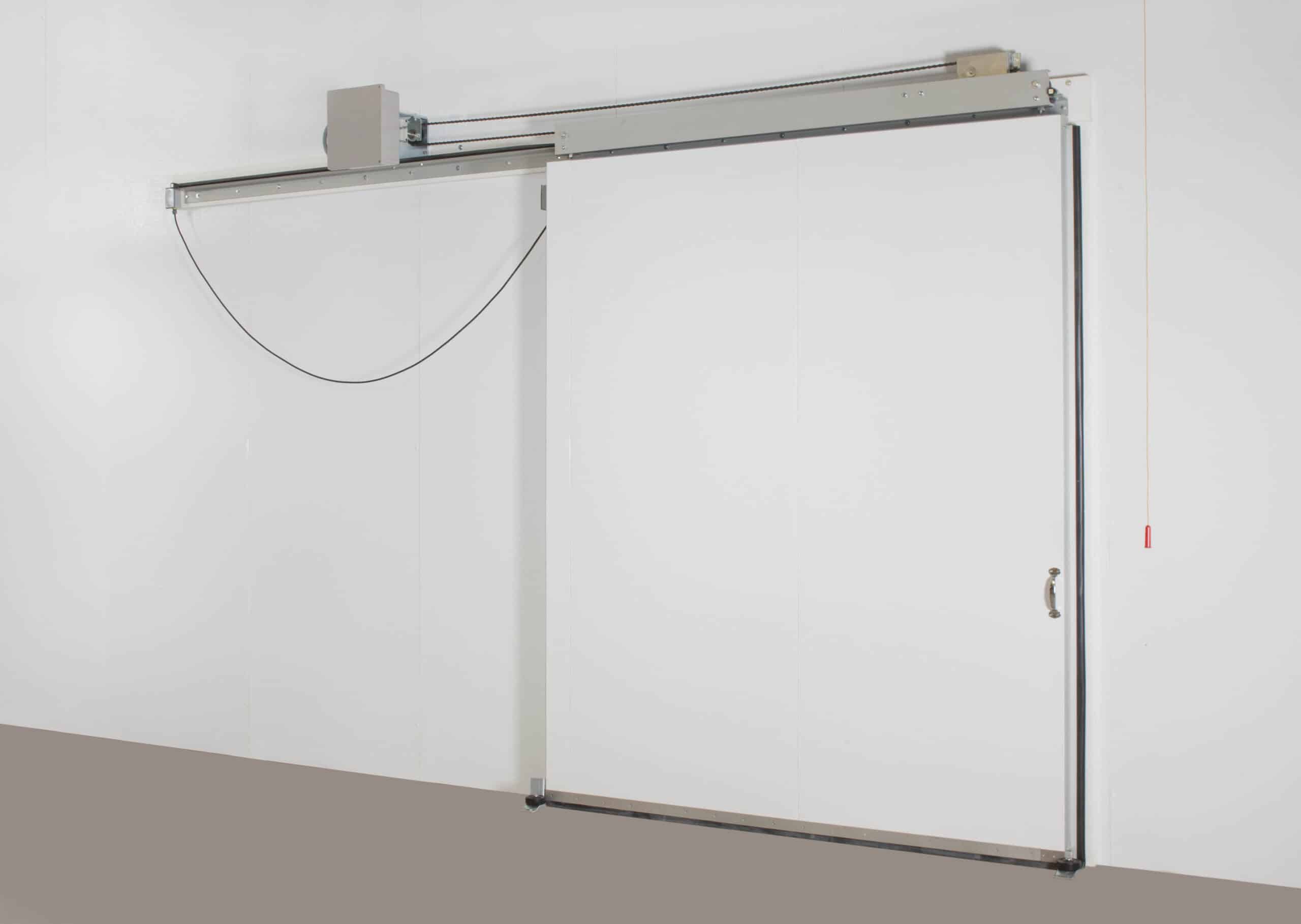

LoTemp Single Slide Freezing/Cooling Doors are designed to seamlessly accommodate pedestrian personnel and forklift/truck traffic in temperature-critical refrigerated areas. Perfect for spaces where swing doors are impractical due to limited space, our single sliding doors offer both manual and power options to suit your traffic needs. Versatile for both interior and exterior applications, these doors are ideal for cooler and freezer environments.
With a focus on maximizing space efficiency, our single horizontal sliding doors provide access for personnel and load handling traffic, even in areas with minimal installation space. Enjoy the benefits of large openings without sacrificing floor space, as our slider doors operate snugly against walls. For added convenience, pass-thru man doors can be integrated into the sliders, facilitating pedestrian traffic while minimizing temperature loss.
Dual-speed operation, NEMA 4 control box (Power doors only)
Down and indoor track system
Two ceiling mount pull switches (Power doors only)
Freezer doors feature full-perimeter heater cables (120V/60Hz)
High-Density Polyethylene Extrusion (HDPE) structural frame for header, casings, jambs, and mirror image backframes
Wood-free design – aircraft-grade aluminum internal door panel frame
Strong, durable, and maintenance-free frame without the need of cladding
Adjustable reinforced neoprene bulb seals on three sides of opening
- Clad with 26 ga. white stucco embossed steel interior and exterior over a vinyl frame with reinforced mitered corners
- Insulated with a minimum of 4” R32, non-CFC foamed-in-place polyurethane foam insulation
- Wood-free design with the use of white heavy duty High-Density Polyethylene Extrusion (HDPE) structural frame for header, casings, jambs, and mirror image backframes.
- HDPE is a maintenance-free solution that provides exceptional resistance to moisture, fading, insects, splintering, and warping.
- Consistent density and zero voids eliminate bacteria, molds, and fungus growth and create a strong durable frame.
- The strength, durability, and overall appearance of HDPE mean no additional steel cladding of the frame is required.
- Adjustable bottom door sweep
- Adjustable reinforced neoprene bulb seals are mounted on all sliding door casings and header for a positive seal, correcting wall irregularities.
- The bottom of each door has a sweep sill of grease-resistant reinforced gasket.
- Adjustable reinforced neoprene bulb seals
- Perimiter jamb mount compression gasket
- 1.75" thick door panel
- .040 aluminum finish
- Grooved-wheel track system
- An aircraft-grade anodized aluminum track holder, with a “V” grooved wheel on UHMW triangle down and in-door track system, creates a positive seal at the frame and floor of each sliding door.
- Combined with a carrier that incorporates a heavy-duty, non-derailing system, and an angle bracket, this track system provides users with a sturdy and reliable door operation.
- Floor-mounted stay rollers protect sliding doors from damage and limit operation.
- All sliding doors are equipped with an exterior bow handle and interior recessed handle as a standard.
- Heater cables (Freezer models only)
- In-fitting hinged freezer doors feature full-perimeter heater cables in the frame and bottom of the door sweep, ready for connection to a 120V/60Hz, single-phase AC line.
- The heat in the bottom door sweep creates a warm “chamber” under the door which eliminates the need for in-floor heaters.
- Dual-speed operator, chain, and controller (Power models only)
- Standard sizes of 36” x 84” and 48” x 84”
- Variety of 24 ga. metal finishes
- White HDPE jambs
- White HDPE mirror image back frames
- Steel cladding of header, casings, jambs and mirror-image back frames to match panel
- Alternate door finishes
- 6” thick panels
- 14” x 14”, and 14” x 24” vision panels both heated and non-heated
- Locking devices for both manual and power applications
- Kickplates (tailored in height and material)
- Pedestrian pass doors
- Additional heated seals for extreme temperatures
- Inside freezer kits for power doors mounted in extreme temperatures
- Meatrail port
- Rainhood
- Control options (remote control, motion control, loop detectors, TDC—time delay close, POM—partial open mode, and photocell)
- Three stainless steel butt hinges (Hager #1101)
- Stainless steel lockset (Hager #3600 lever style)
- 24 ga. Stainless steel, smooth, embossed, 304#4
- 24 ga. Sanisteel, smooth, white
- 24 ga. Galvanized, smooth, embossed, white
- 24 ga. Galvanized, smooth, mill
- .040 Aluminum, smooth, embossed, white
- .040 Aluminum, smooth, mill
- Battery Back-Up
- Loop/Motion Detectors
- Time Delay Close
- Partial Opening Control
- Radio Controls
- Photocell Opening/Closing System
- Photocell Open With Time Delay Close
- Photocell Safety
For more information, view LoTemp Brochure.
- ETL Certified
- ANSI
- UL 471CAN
- CSA C22.2 No.120 Listed
A comprehensive range of options is available for all LoTemp Doors, allowing you to incorporate features tailored to your specific cold storage application.
- High Sill
- Keyed cylinder (Hinged doors only)
- Stainless Steel hardware (Hinged doors only)
- Vision panels
- Kick plates
- Meat rail ports
- Rain hoods
- Interior jambs
- Back frames
- Locking devices
- Pedestrian pass doors (Sliding doors only)
- Alternative finishes
- Ability to source hardware per specification including electronic hardware, exit devices, door closers, etc.
1-Year Warranty*
*See LoTemp Limited Warranty for full details.
