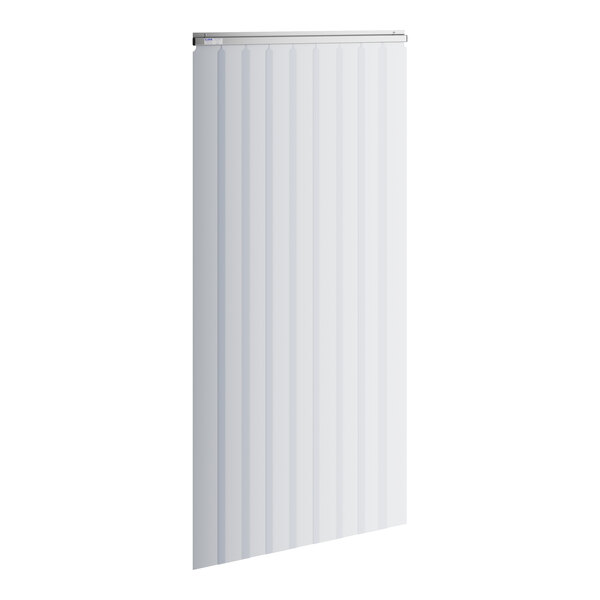

Tracks accept vinyl strips in wide range of widths and materials
Models for use in material handling, production, dry and cold storage
Custom sizes available upon request

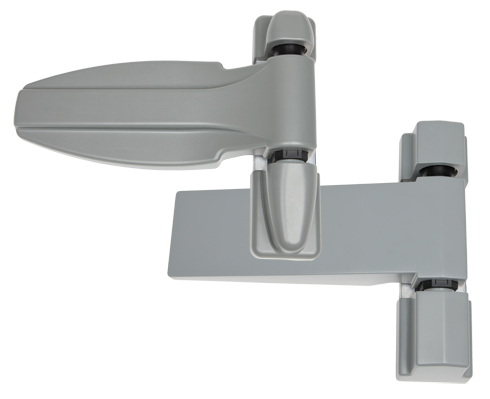

Kason 1345 PERFORMER™ ADJUSTABLE HINGE
Keeps doors from swinging freely with a simple adjustment
Strap adjusts horizontally, providing door lift and rotation to compensate for sag in the frame or mounting
Strap is engineered with dual bearing points and through-shaft construction to ensure stability
Built-in spring action is standard
Time-tested cam-rise technology assists closing and reduces gasket wear, even with irregular floors
Flange has a removable pin, allowing lift-off of door without removing hinges
Left- and right-hand hinges use the same component parts for faster mounting and replacement. Install hinge flange and strap, then snap-on composite covers
Performer™ decorative covers are molded of reinforced, high-impact ABS composite material to resist wear and maintain appearance
Covers mount securely over hinge mechanism to keep out dirt and debris
Cover shapes and/or colors may be customized to suit your styling needs (based on volume commitment)
Performer™ 1345 meets NSF/ANSI Standard 2 for food equipment components

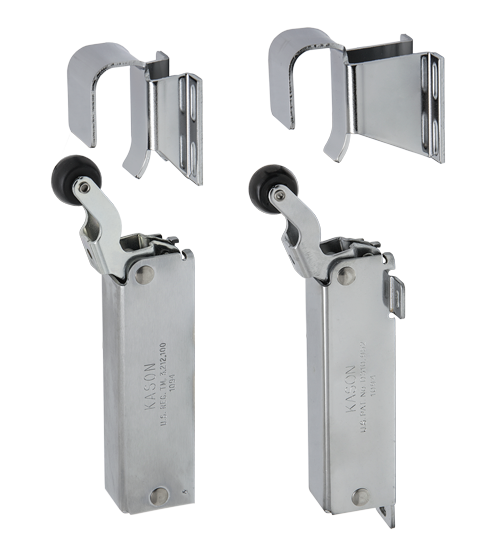

Solid steel enclosed housing and bend-resistant hook assure long wear in heavy use
Extra-wide hook ensures roller pick-up and overcomes alignment problems
Life-cycle tested to operate reliably even after a half-million closures
Perfect complement for Kason Walk-in hinges and latches where self-closing doors with controlled closure are needed
Mounting slots on hook allow for easy adjustment to compensate for door sag, keeping roller aligned with hook for proper function
1094S DUAL-SPEED CLOSER
All the features of the 1094 SureClose™, with the additional benefit of a specially developed snubbing mechanism. Initial fast closing action allows unit to withstand slamming force, while secondary, slower action provides gradual closing to lessen final impact.

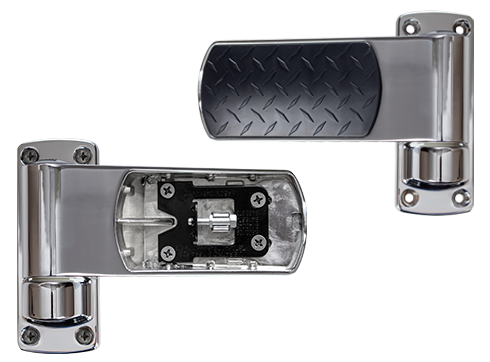

Kason 1346 Performer™ Lift-Off Adjustable Hinge
Strap adjusts horizontally, providing door lift and rotation to compensate for sag over time
Built-in spring action is standard
Time-tested cam-rise technology assists closing and reduces gasket wear, even with uneven floors. 1346 has 40% more rise than traditional on-rise hinges to magnify the benefit
Flange has a removable cap, allowing lift-off of door without removing hinges
Left and right hand hinges use the same component parts for faster mounting and replacement
Covers mount securely over hinge mechanism to keep out dirt and debris
Performer™ 1346 meets NSF/ANSI Standard 2 for food equipment components
Spacer shims available for strap and flange to maintain alignment of pivot center lines when kick plates are used under the lower hinges. Proper pivot alignment eliminates binding and unwanted hinge wear and tear

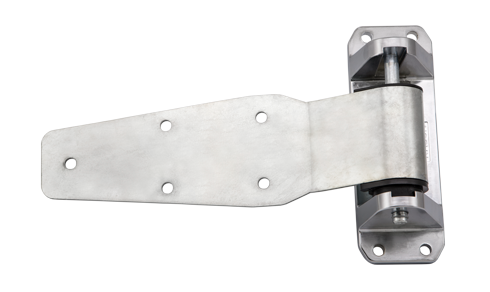

Kason 1278 High-Rise Hinge
Industry standard self-closing cam-rise hinge
Heavy-duty face mount hinge
High rising spiral cams. Total rise 7/8”
Holds open dwell at 105°
Through-pin flange design
Raises door fast to create greater closing momentum, reduce closing drag, and reduce wear on sweeper gasket

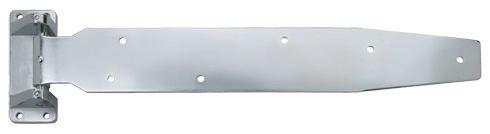

Kason 1277 Series Heavy Duty Hinges
Tough, economical self-closing hinges
Sizes to fit all supermarket, cold storage and other heavy duty walk-in requirements
Precision machined steel cams gently raise and lower door for easier opening and less gasket wear
No dwell
Extra wide strap and reinforcing ribs on underside of flange provide great strength and durability.
Stress tested through thousands of slam cycles.
Reversible, without disassembly, for right- or left-opening door.

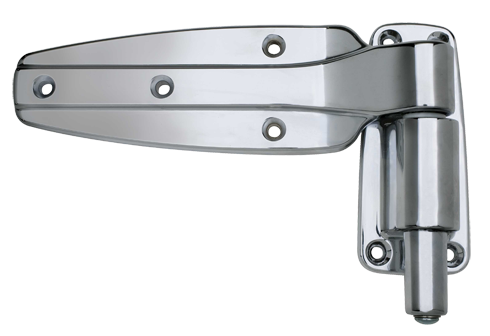

Kason 1248 Spring Assisted Hinge
Spring mechanism adds extra closing force to overcome air resistance on heavy walk-in doors
Special high-lift cam system outperforms similar spring hinges
Cam-rise action reduces gasket wear, even with irregular floors
Built-in dwell holds door open beyond 130°
Simple manual operation reverses hinges for use on right or left-opening door

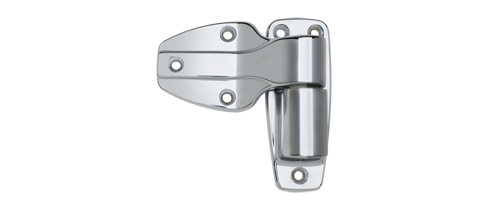

Kason 1246 Reversible Cam-rise Hinge: Industry standard self-closing cam-rise hinges
Door opens with minimum effort.
Strong self-lubricating nylon cam delivers smooth, trouble-free door operation
Cam-rise action reduces gasket wear, even with irregular floors
Holds door open beyond approximately 130°
Doors lift off without disassembly or removing hinges
Simple manual operation reverses hinges for use on right- or left-opening door
